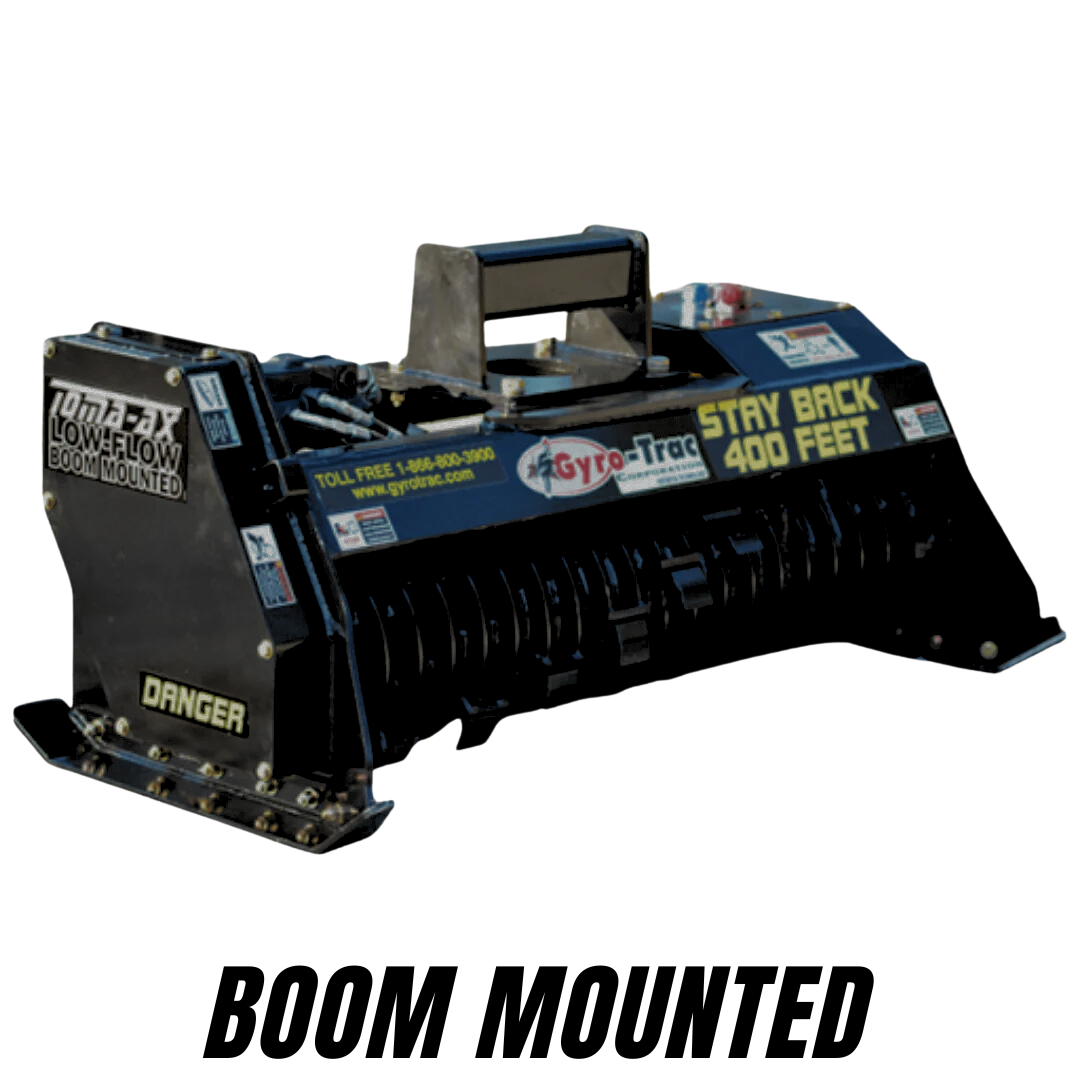

Boom Mounted Cutter-head

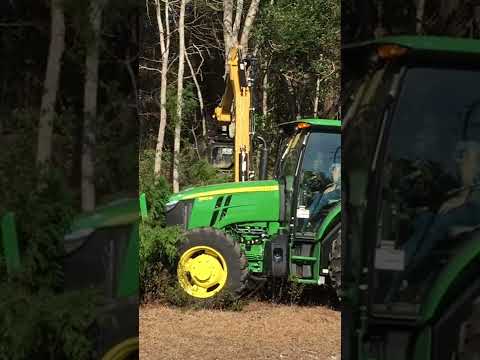

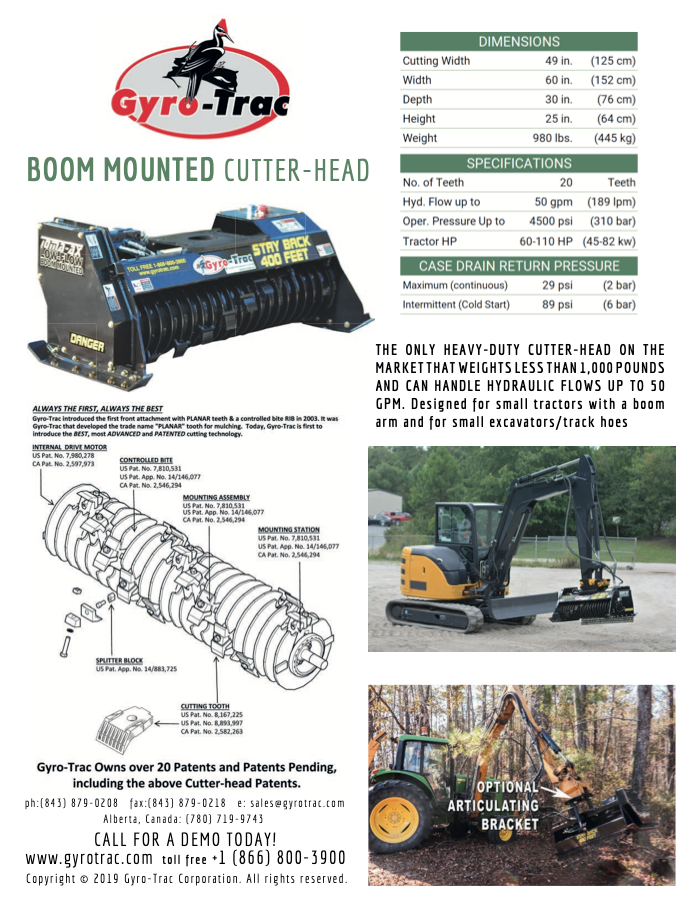

THE ONLY HEAVY-DUTY CUTTER HEAD ON THE MARKET THAT WEIGHS LESS THAN 1,000 POUNDS AND CAN HANDLE HYDRAULIC FLOWS UP TO 50 GPM; Designed for small tractors with a boom arm and for mini-excavators / track hoes.

With the Boom Mounted cutter-head, you will cut more wood in less time than with any competitor in its class. With less weight and more productivity than any other head on the market, PRODUCTIVITY, PERFORMANCE & PROFITABILITY will become the hallmarks of your business. Call for a demonstration today, and experience Gyro-Trac’s Performance Promise with the Boom Mounted Low-Flow Cutter-head.



DIMENSIONS:

Cutting Width

49 in

125 cm

Width

60 in

152 cm

Depth

30 in

76 cm

Height

25 in

64 cm

Weight

980 lbs

445 kg


SPECIFICATIONS:

No. of Teeth

20

TEETH

Hyd. Flow up to

50 gpm

189 lpm

Op Pressure up to

4,500 psi

310 Bar

Tracor HP

60 - 110 HP

45-82 kw


CASE DRAIN RETURN PRESSURE:

Max (continuous)

29 psi

2 bar

Intermittent (cold start)

89 psi

6 bar


Gyro-Trac’s SABRE-TOOTH TITAN cutting technology PULVERIZES Wood into Sawdust-like Mulch. The new SABRE-TOOTH design is the NEXT GENERATION of "disruptive technology," improving on Gyro-Trac's Planar tooth.

It begins with a WIDER TOOTH, held in place with a WEDGED FRICTION BLOCK, taking all the force off of the single bolt. THAT'S RIGHT! Only one bolt to quickly and easily replace worn teeth.

The CONTROLLED BITE is now achieved with TWO instead of one control rib under the tooth. The distance between control ribs is wider.

The KNOCK-OUT RELIEF that reduces resistance by allowing the wood chip to curl into the relief, now has a SPLIT BLOCK strategically placed to SPLIT THE CHIP and further REDUCE the size of the wood chip. This new design creates a SELF-CLEANING effect, clearing the tooth for the next bite.


Boom Mounted Cutter-head
Boom Mounted Cutter-head Sale price$0.00
