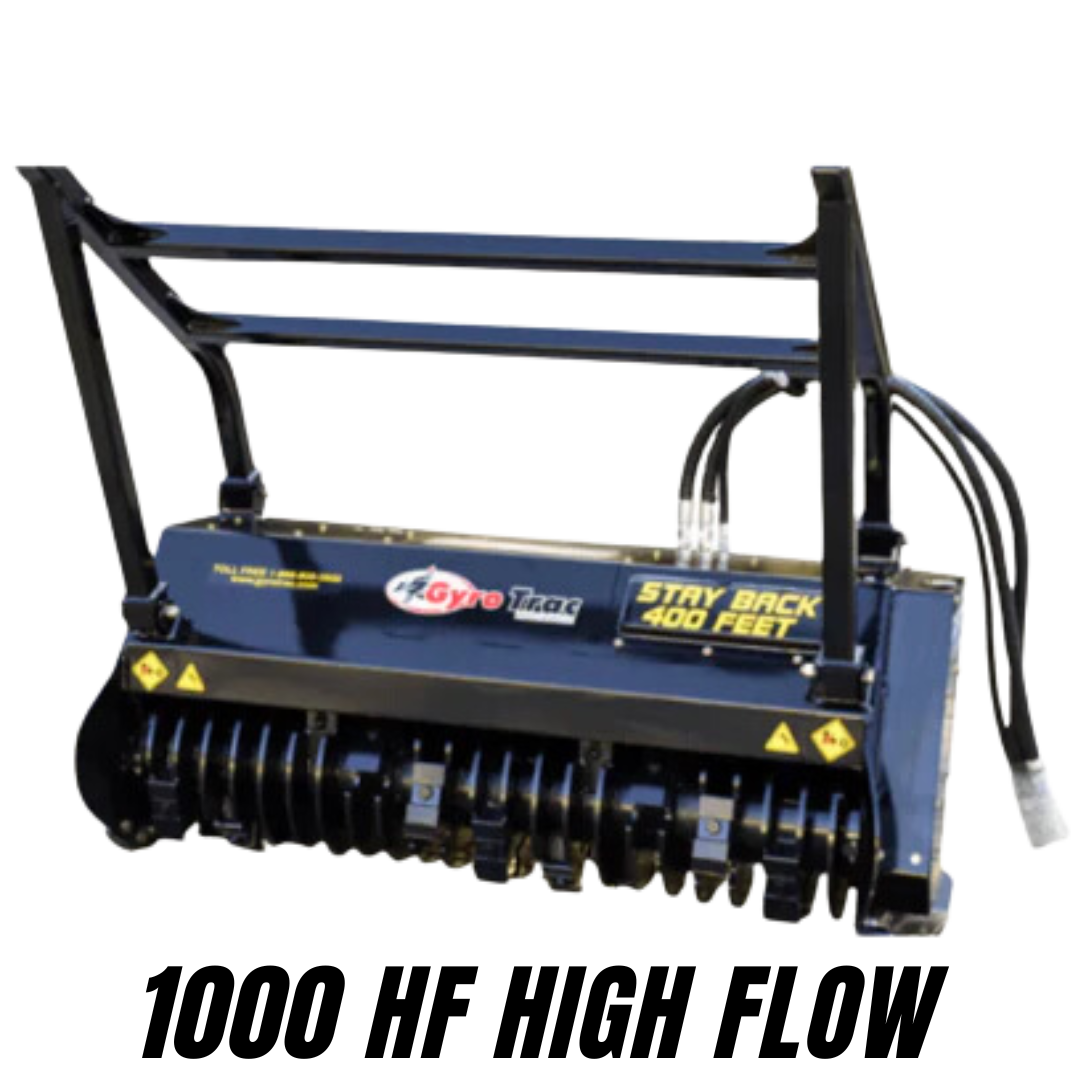

1000 HF Cutter-head

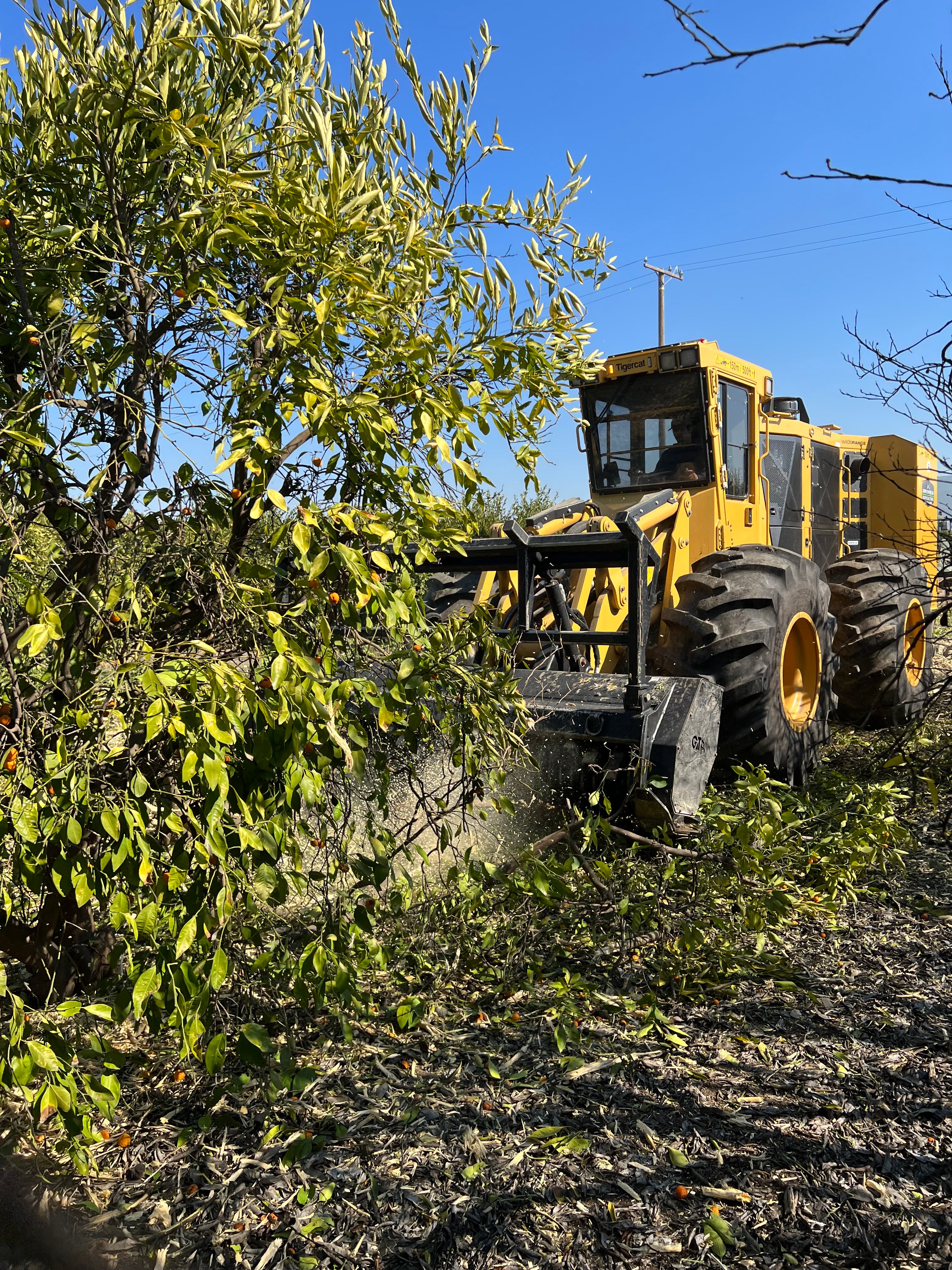

The 1000HF is Gyro-Trac's Largest, Most Powerful Cutter-head, for use on High Horse-power Prime Movers on Wheels or Tracks.

DIMENSIONS:


Cutting Width	10 ft	305 cm
Width	135 in	343 cm
Depth	61 in	155 cm
Height	65 in	165 cm
Weight	8,500 lbs	3,856 kg

SPECIFICATIONS:


No. of Teeth	40	TEETH
Hyd. Flow up to	225 gpm	852 lpm
Op Pressure up to	6,000 psi	413 Bar

CASE DRAIN RETURN PRESSURE:


Max (continuous)	43 psi	3 bar

Gyro-Trac’s SABRE-TOOTH TITAN cutting technology PULVERIZES Wood into Sawdust-like Mulch. The new SABRE-TOOTH design is the NEXT GENERATION of "disruptive technology," improving on Gyro-Trac's Planar tooth.

It begins with a WIDER TOOTH, held in place with a WEDGED FRICTION BLOCK, taking all the force off of the single bolt. THAT'S RIGHT! Only one bolt to quickly and easily replace worn teeth.

The CONTROLLED BITE is now achieved with TWO instead of one control rib under the tooth. The distance between control ribs is wider.

The KNOCK-OUT RELIEF that reduces resistance by allowing the wood chip to curl into the relief, now has a SPLIT BLOCK strategically placed to SPLIT THE CHIP and further REDUCE the size of the wood chip. This new design creates a SELF-CLEANING effect, clearing the tooth for the next bite.
