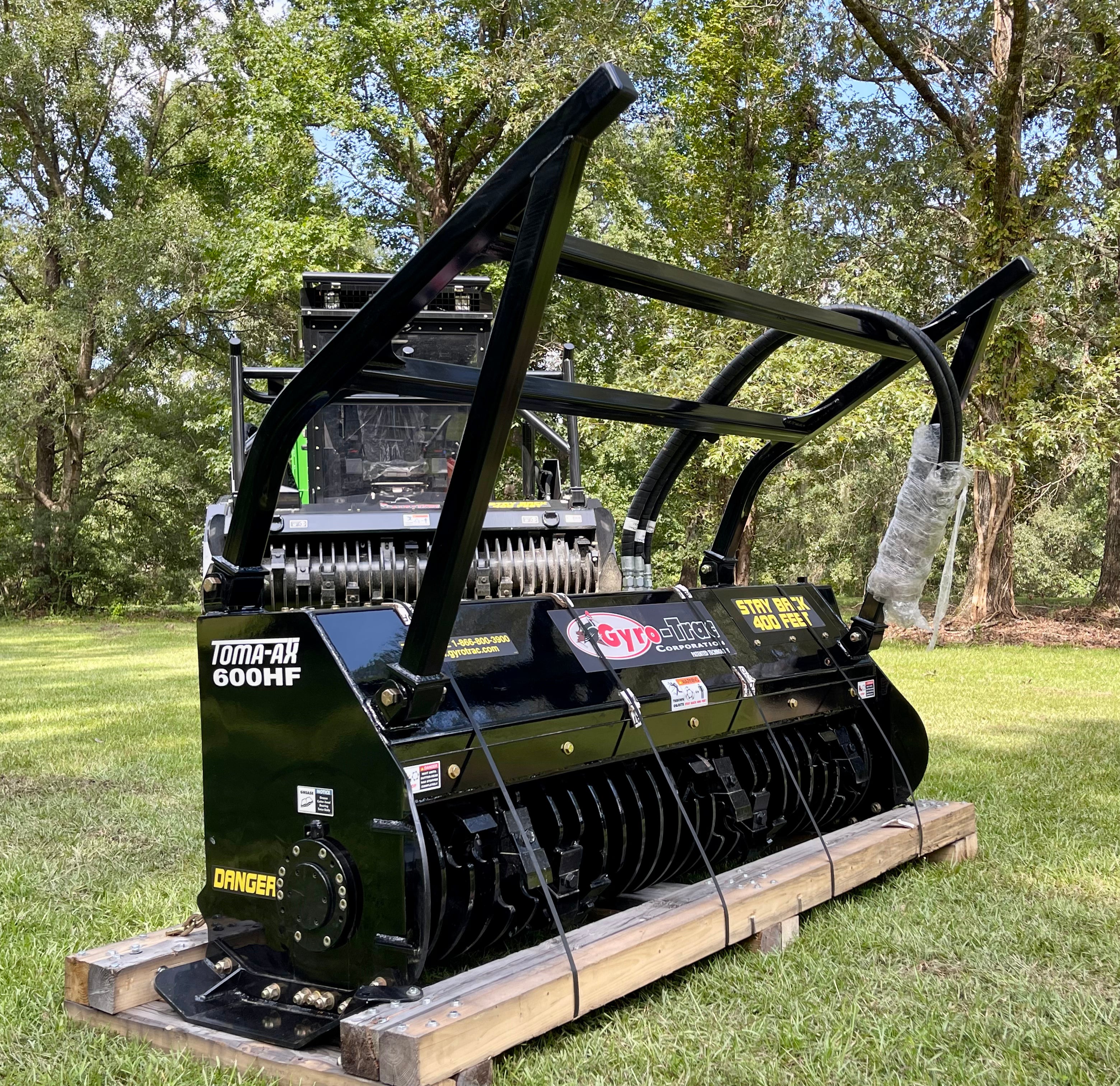

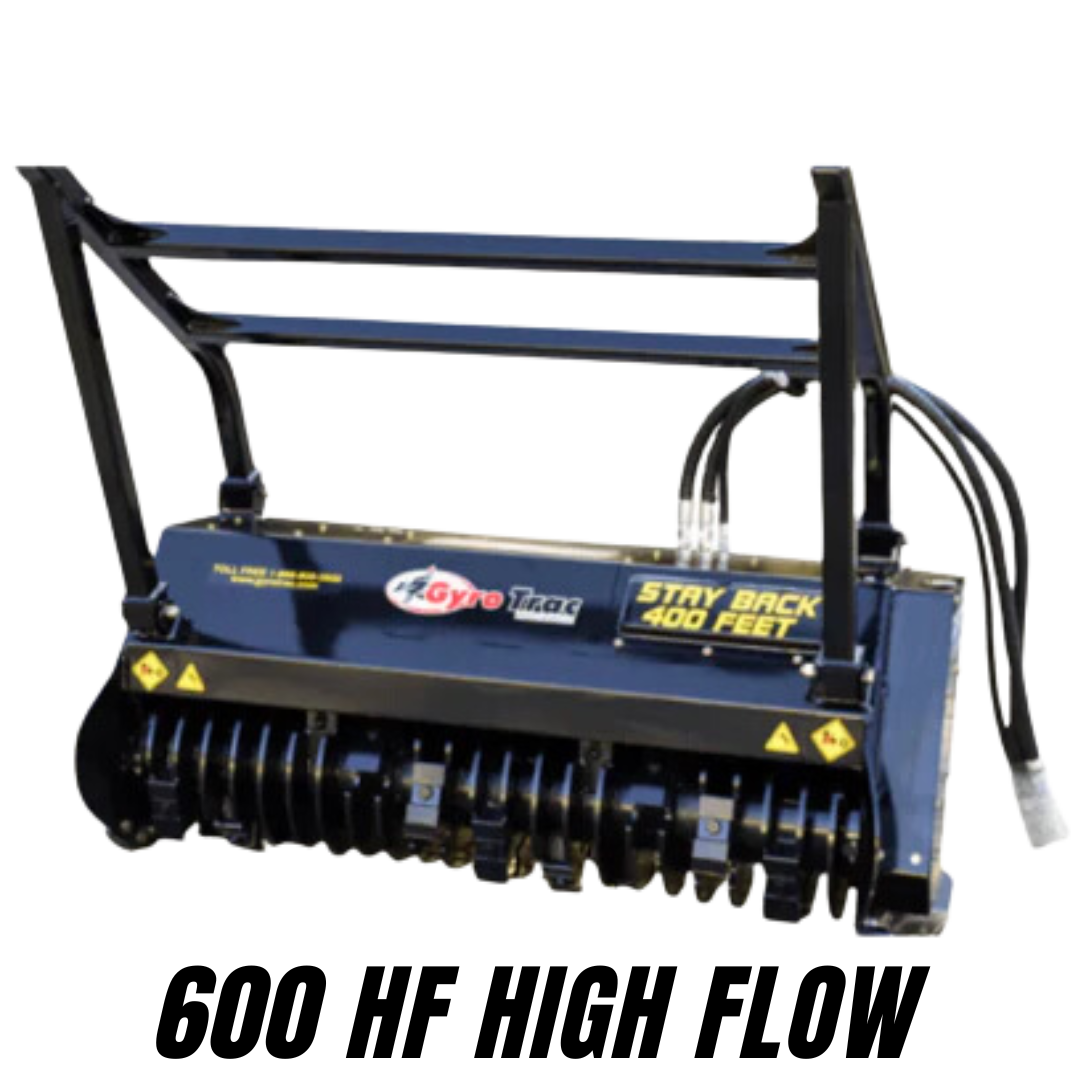

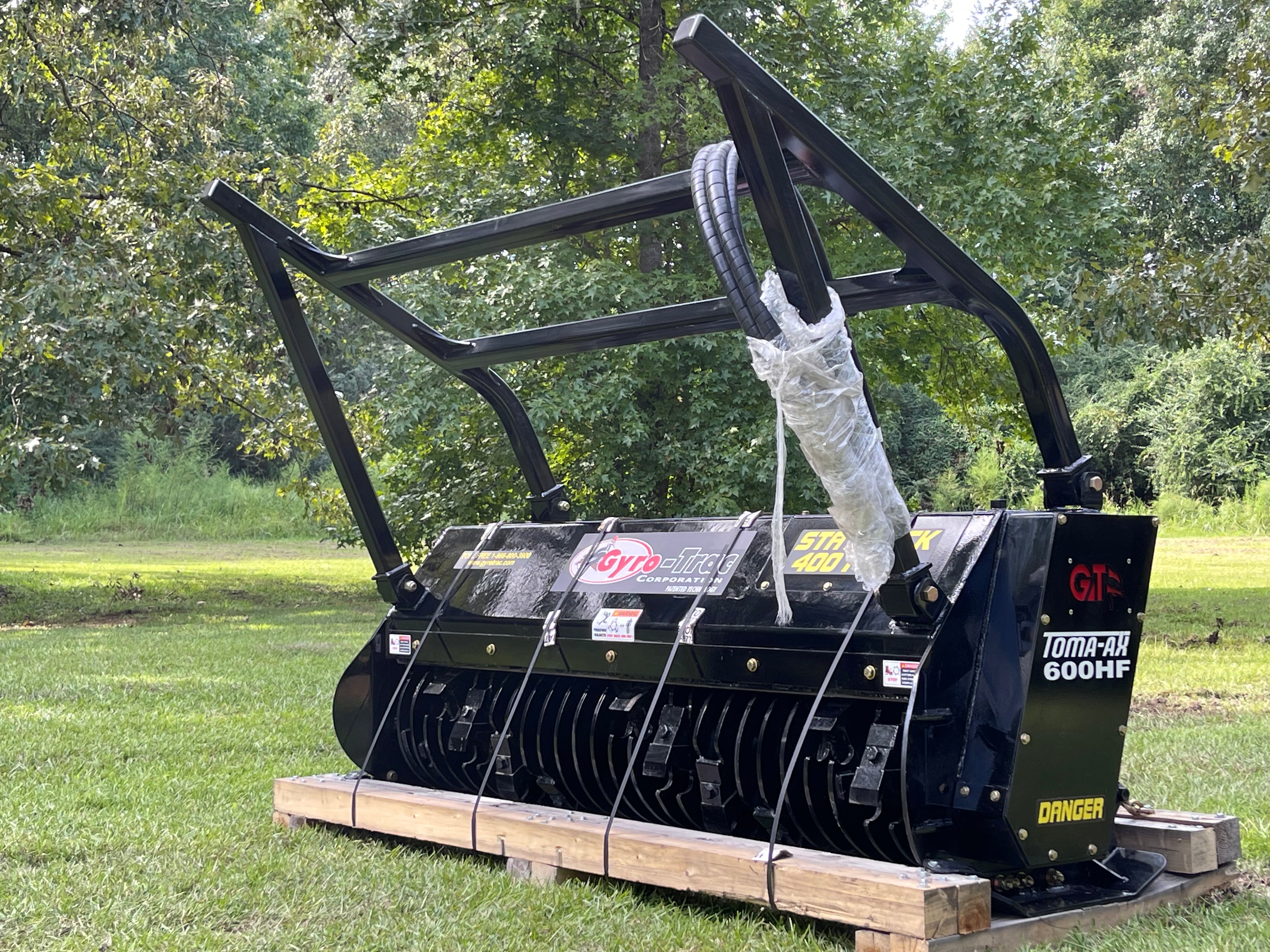

600 HF High Flow Cutter-head



The 600 HF is being introduced to the market to provide full-width coverage for maximizing skid steer performance.


DIMENSIONS:

Cutting Width

79 3/4 in

71 cm

Width

92 3/8 in

235 cm

Depth

51 3/4 in

131.4 cm

Height

66 in

168 cm

Weight

2950 lbs.

1338 kg


SPECIFICATIONS:

No. of Teeth

26

Teeth

Hyd. Flow up to

50 gpm

189 lpm

Oper. Pressure up to

6000 psi

413 bar


CASE DRAIN RETURN PRESSURE:

Maximum (Continuous)

43 psi

3 bar

Intermittent (cold start)

73 psi

5 bar

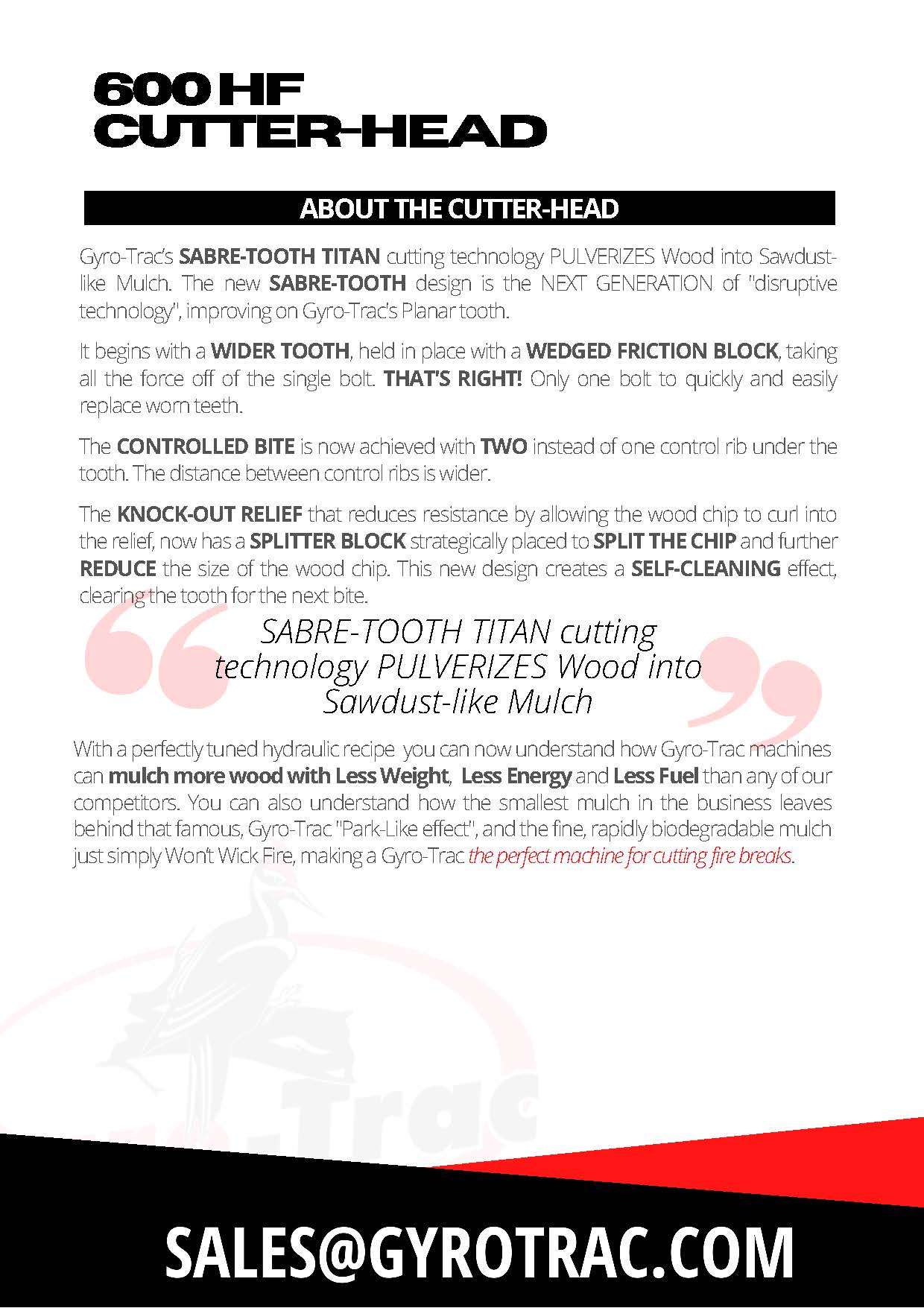

Gyro-Trac’s SABRE-TOOTH TITAN cutting technology PULVERIZES Wood into Sawdust-like Mulch. The new SABRE-TOOTH design is the NEXT GENERATION of "disruptive technology," improving on Gyro-Trac's Planar tooth.

It begins with a WIDER TOOTH, held in place with a WEDGED FRICTION BLOCK, taking all the force off of the single bolt. THAT'S RIGHT! Only one bolt to quickly and easily replace worn teeth.

The CONTROLLED BITE is now achieved with TWO instead of one control rib under the tooth. The distance between control ribs is wider.

The KNOCK-OUT RELIEF that reduces resistance by allowing the wood chip to curl into the relief, now has a SPLIT BLOCK strategically placed to SPLIT THE CHIP and further REDUCE the size of the wood chip. This new design creates a SELF-CLEANING effect, clearing the tooth for the next bite.

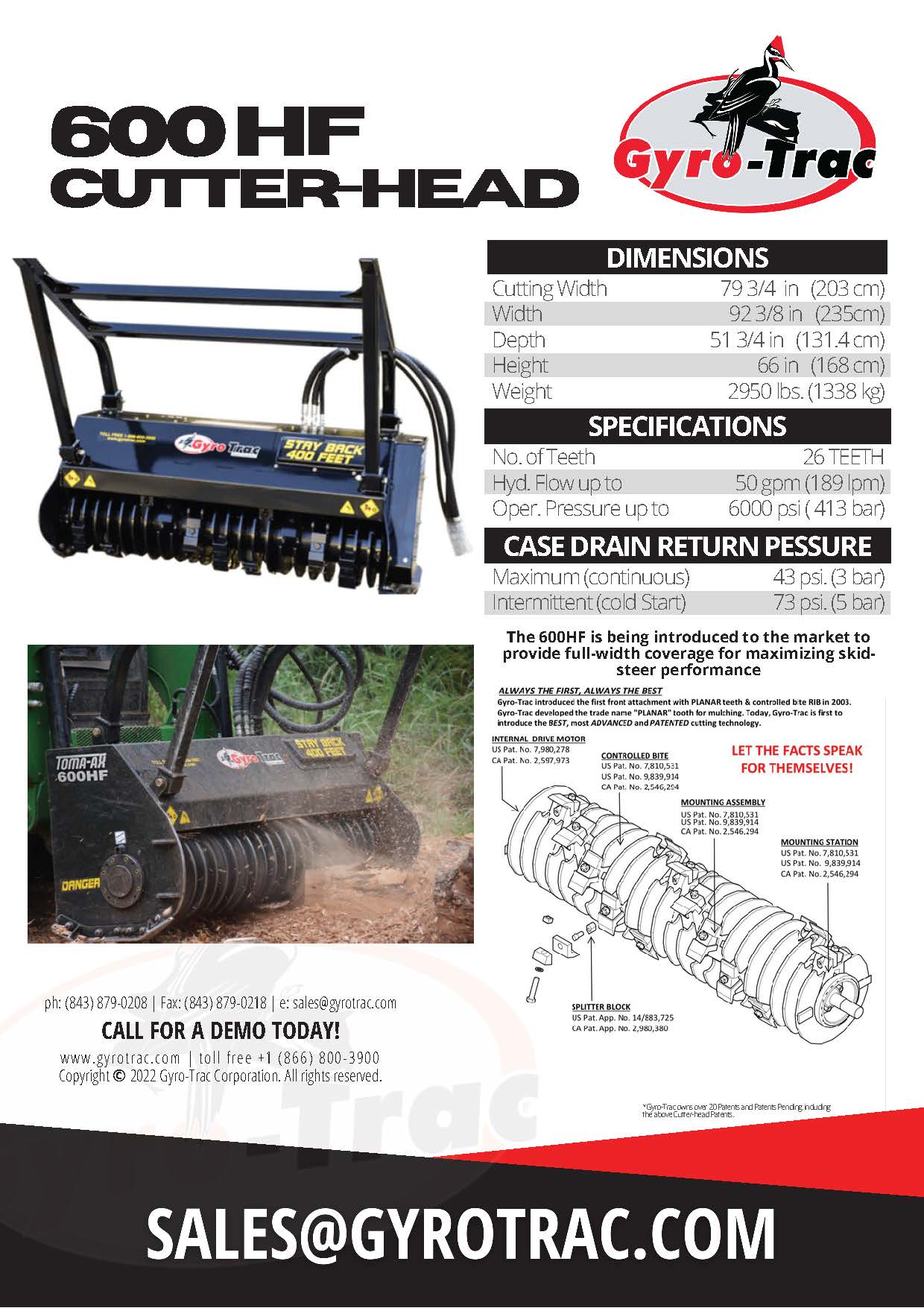

DOWNLOAD THE SPEC SHEET
