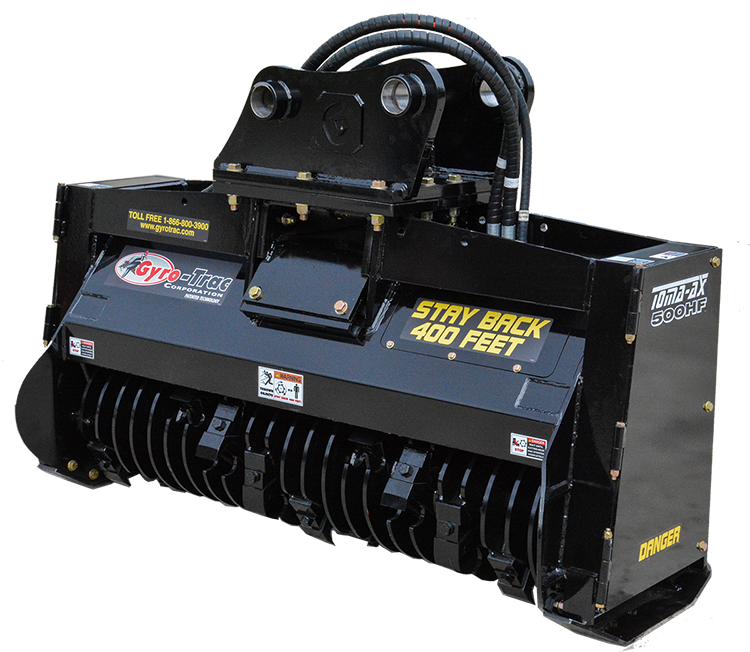

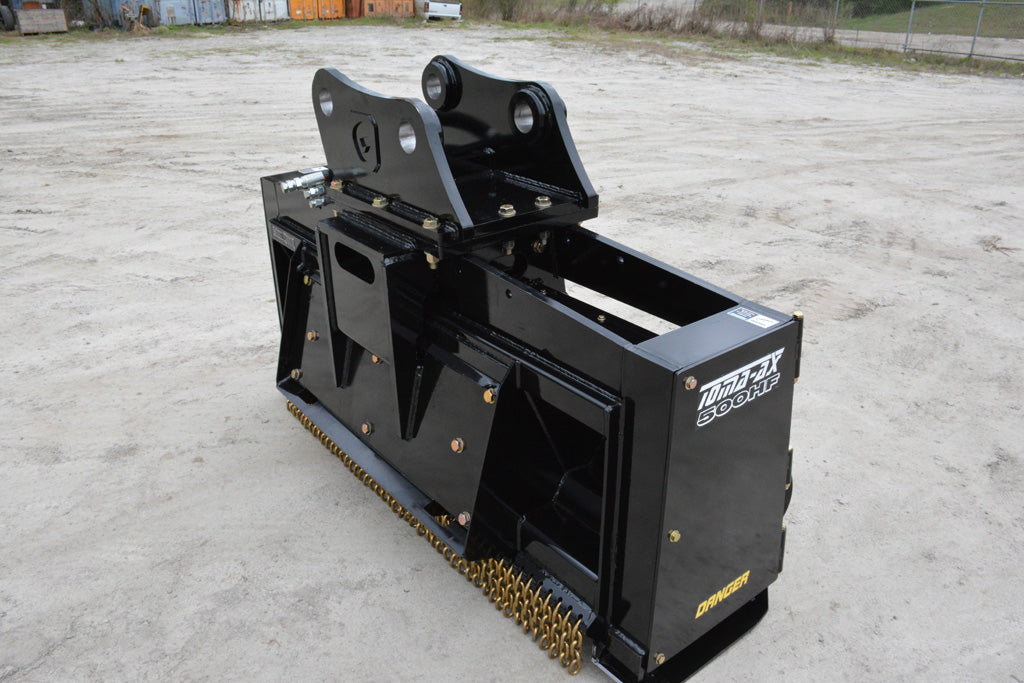

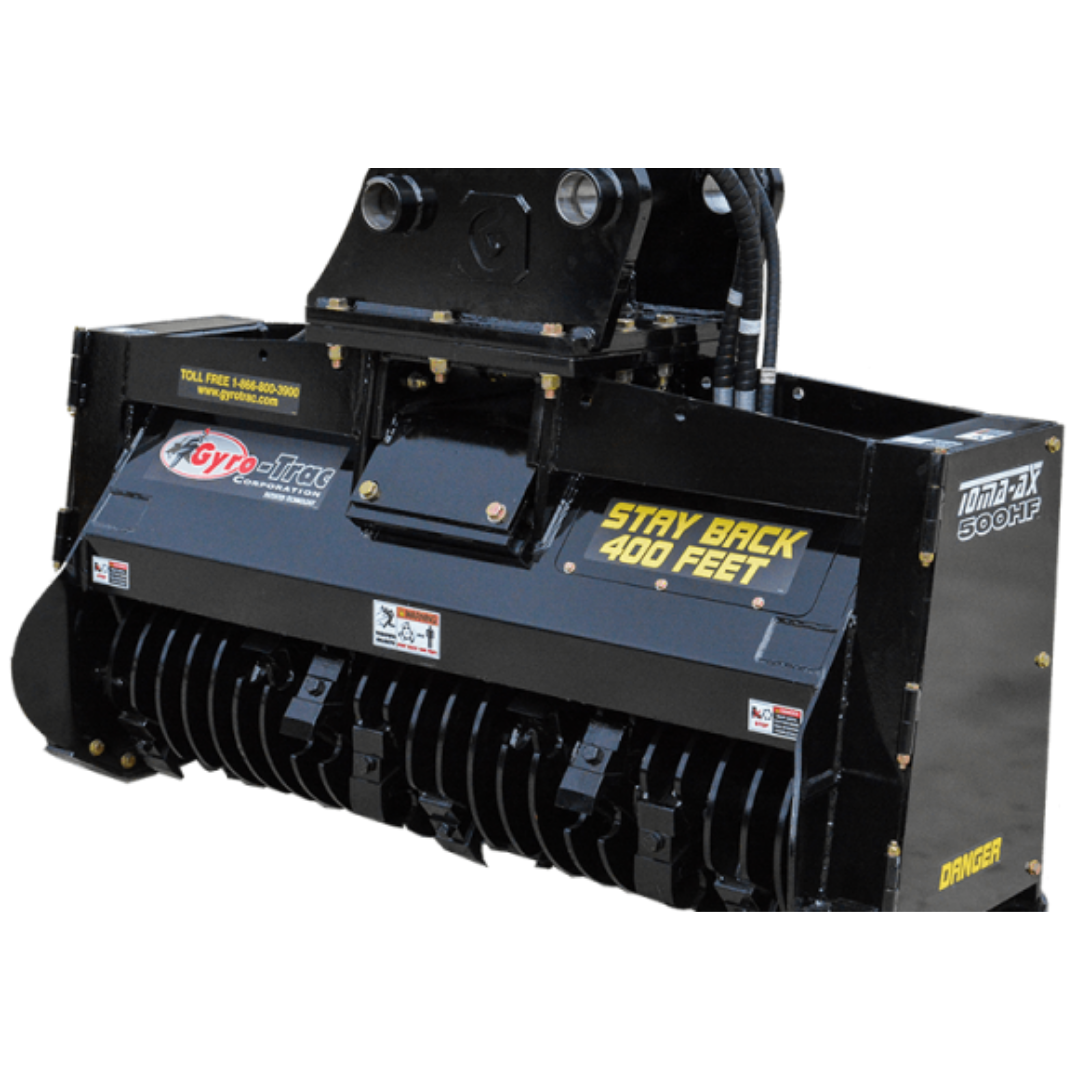

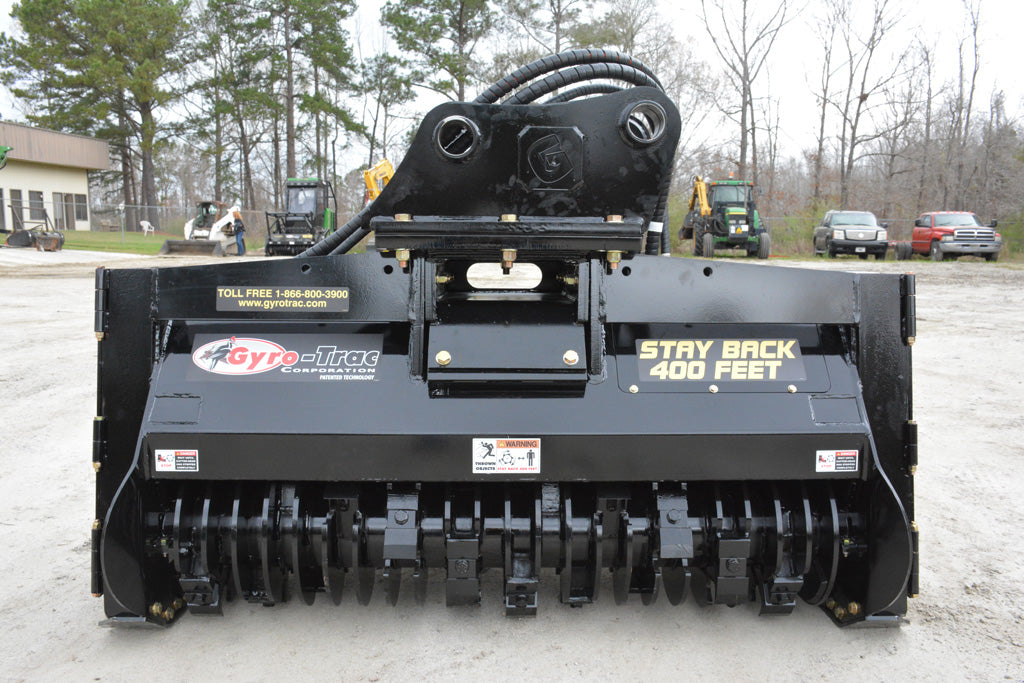

500 HF HDM Cutter-head

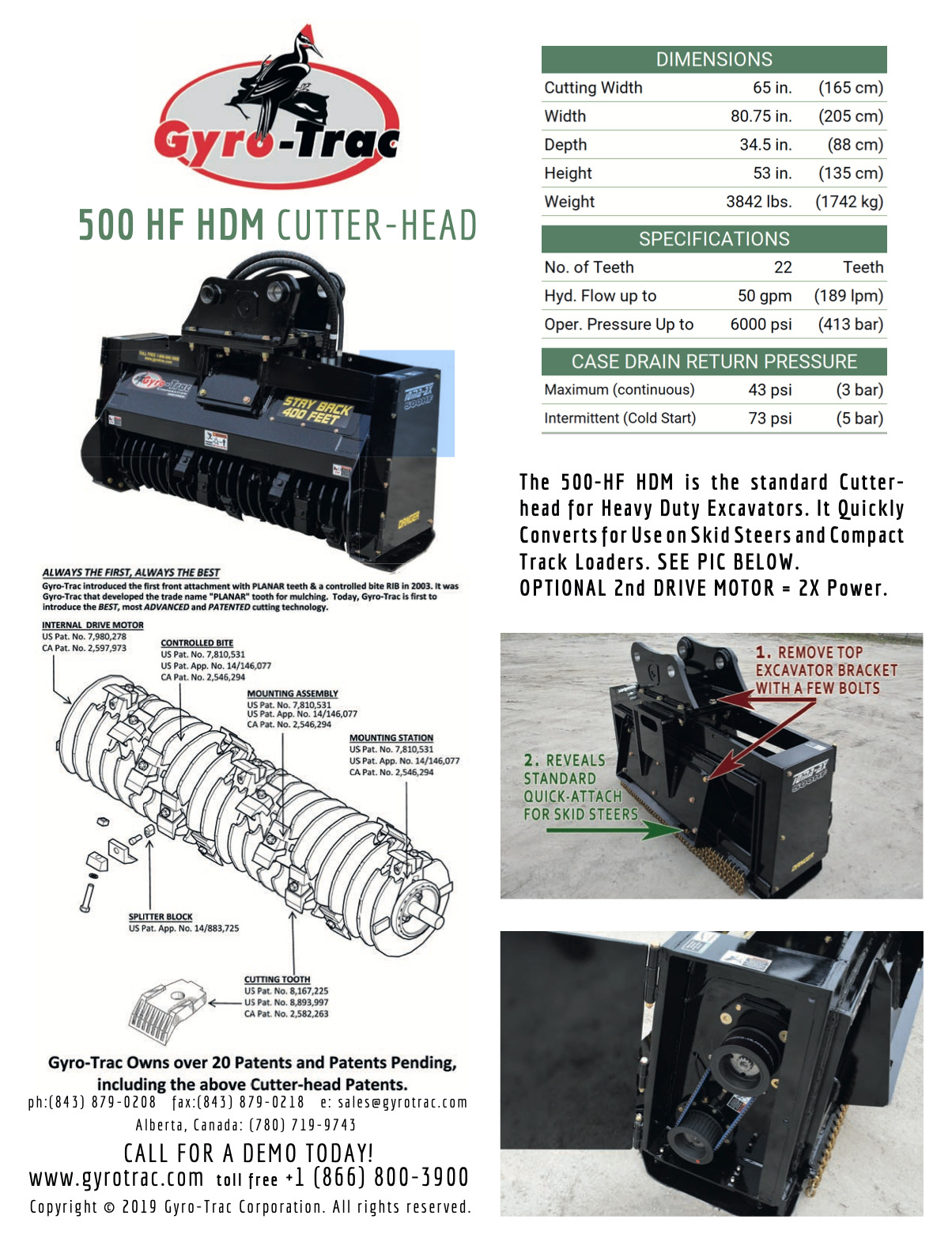

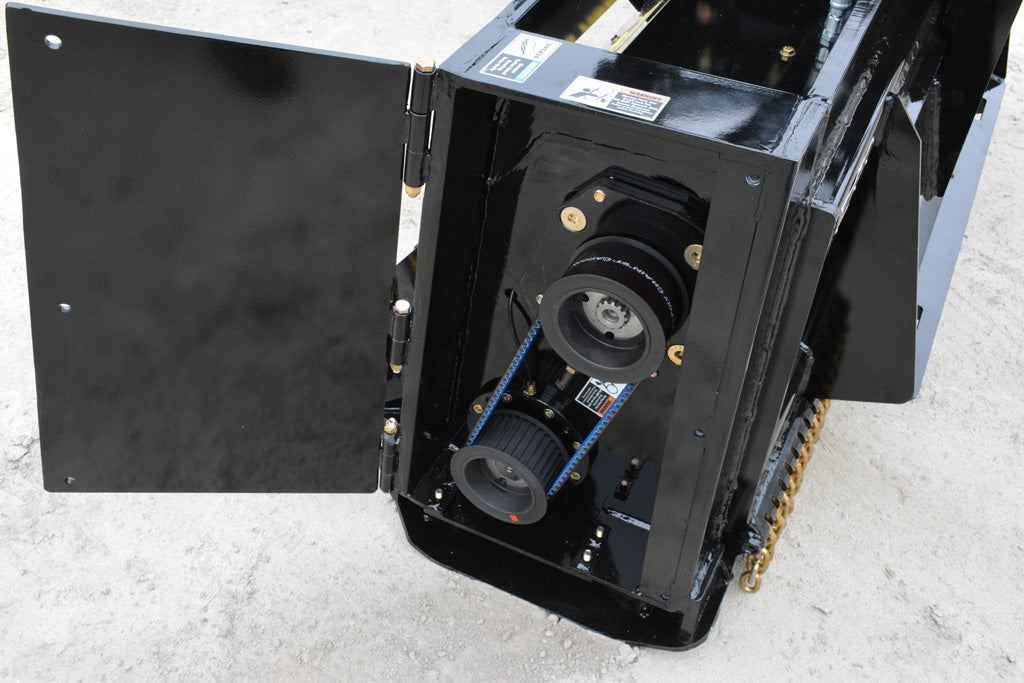

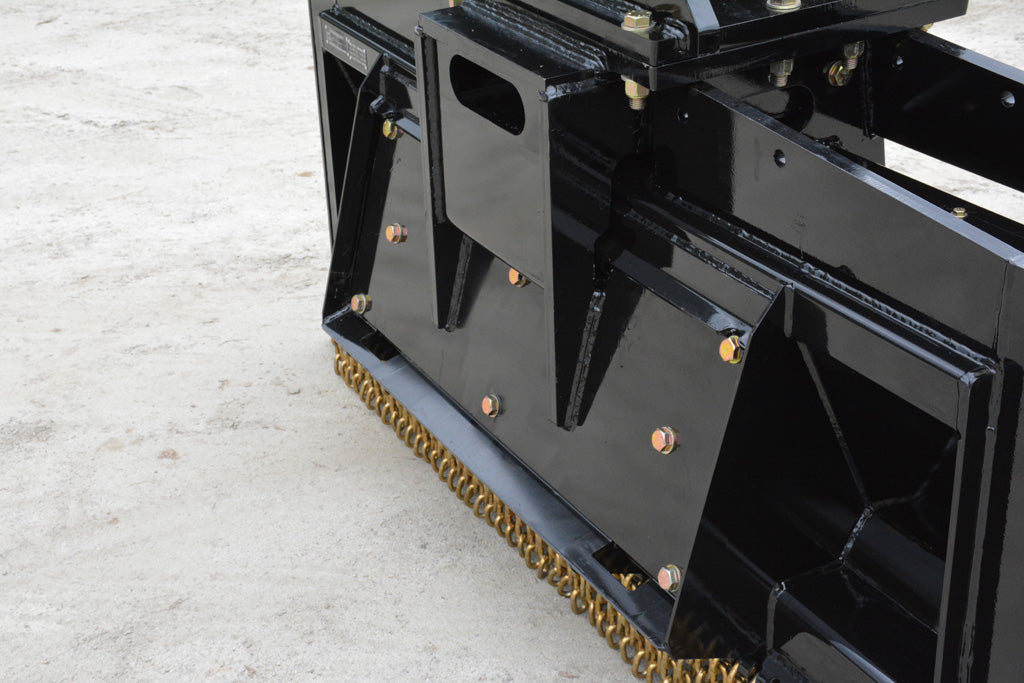

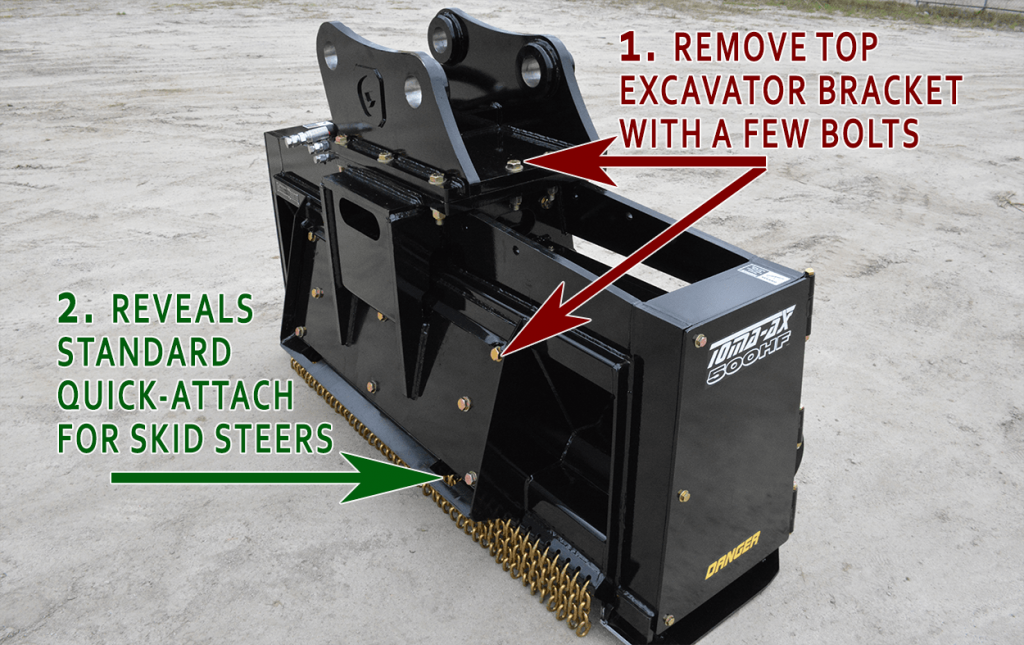

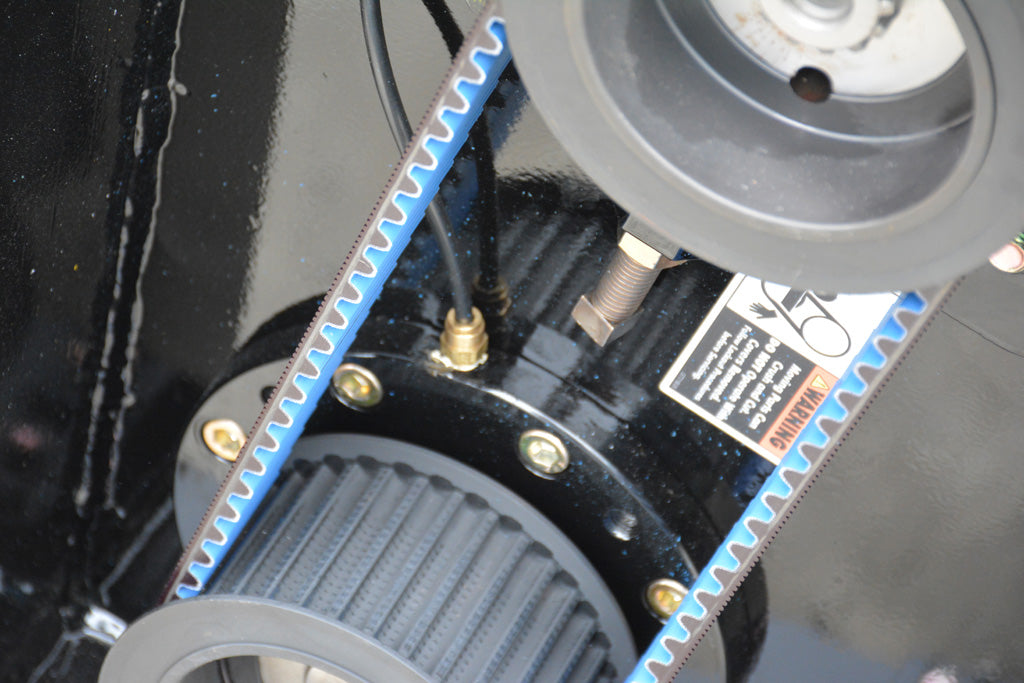

The 500-HF HDM is the standard Cutter- head for Heavy Duty Excavators. It Quickly Converts for Use on Skid Steers and Compact Track Loaders. SEE PIC BELOW. Optional 2nd Drive Motor = 2x Power!


DIMENSIONS:

Cutting Width

65 in

165 cm

Width

80.75 in

205 cm

Depth

34.5 in

88 cm

Height

53 in

135 cm

Weight

3,842 lbs

1,742 kg


SPECIFICATIONS:

No. of Teeth

22

TEETH

Hyd. Flow up to

50 gpm

189 lpm

Op Pressure up to

6,000 psi

413 Bar


CASE DRAIN RETURN PRESSURE:

Max (continuous)

29 psi

2 bar

Intermittent (cold start)

73 psi

5 bar

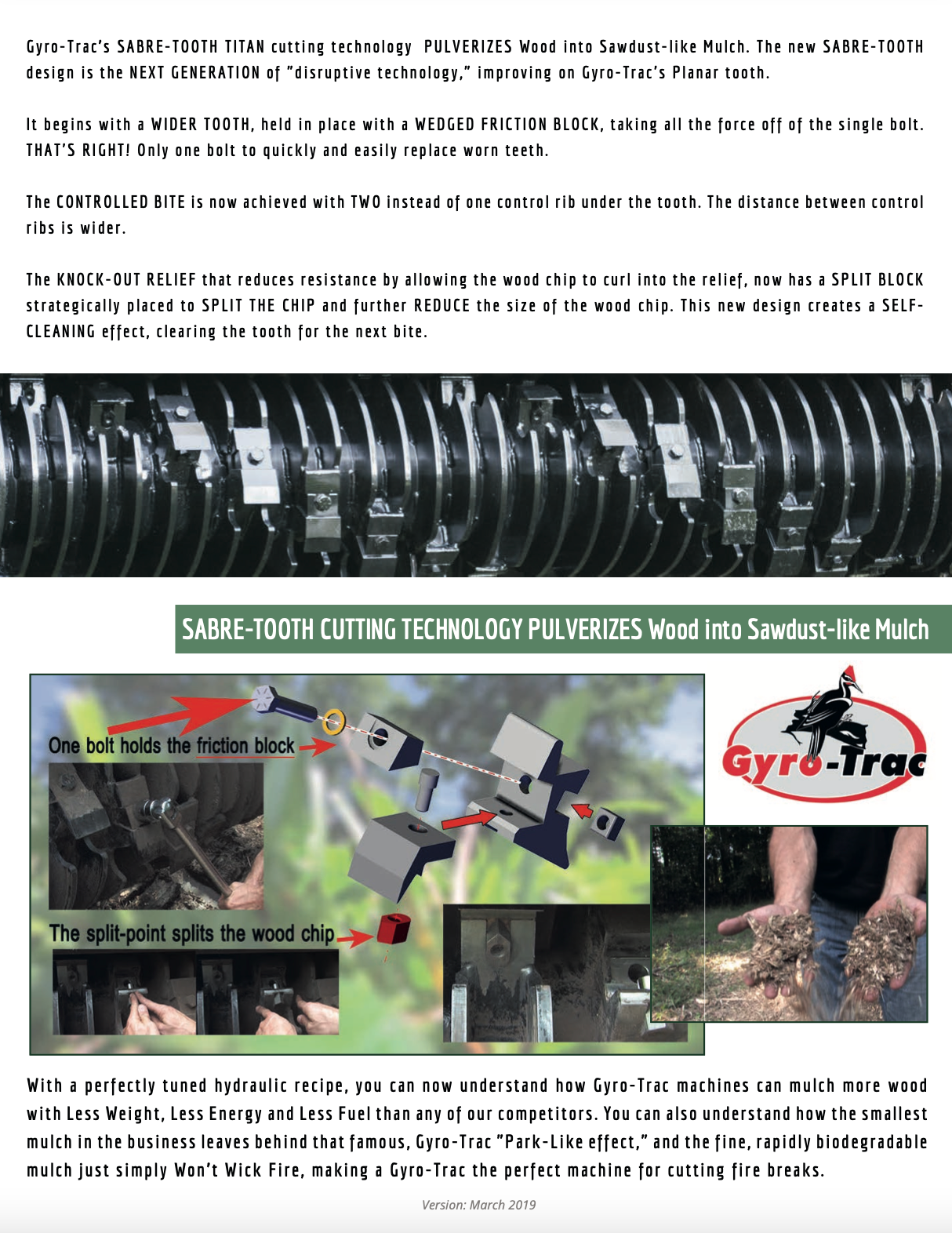

Gyro-Trac’s SABRE-TOOTH TITAN cutting technology PULVERIZES Wood into Sawdust-like Mulch. The new SABRE-TOOTH design is the NEXT GENERATION of "disruptive technology," improving on Gyro-Trac's Planar tooth.

It begins with a WIDER TOOTH, held in place with a WEDGED FRICTION BLOCK, taking all the force off of the single bolt. THAT'S RIGHT! Only one bolt to quickly and easily replace worn teeth.

The CONTROLLED BITE is now achieved with TWO instead of one control rib under the tooth. The distance between control ribs is wider.

The KNOCK-OUT RELIEF that reduces resistance by allowing the wood chip to curl into the relief, now has a SPLIT BLOCK strategically placed to SPLIT THE CHIP and further REDUCE the size of the wood chip. This new design creates a SELF-CLEANING effect, clearing the tooth for the next bite.

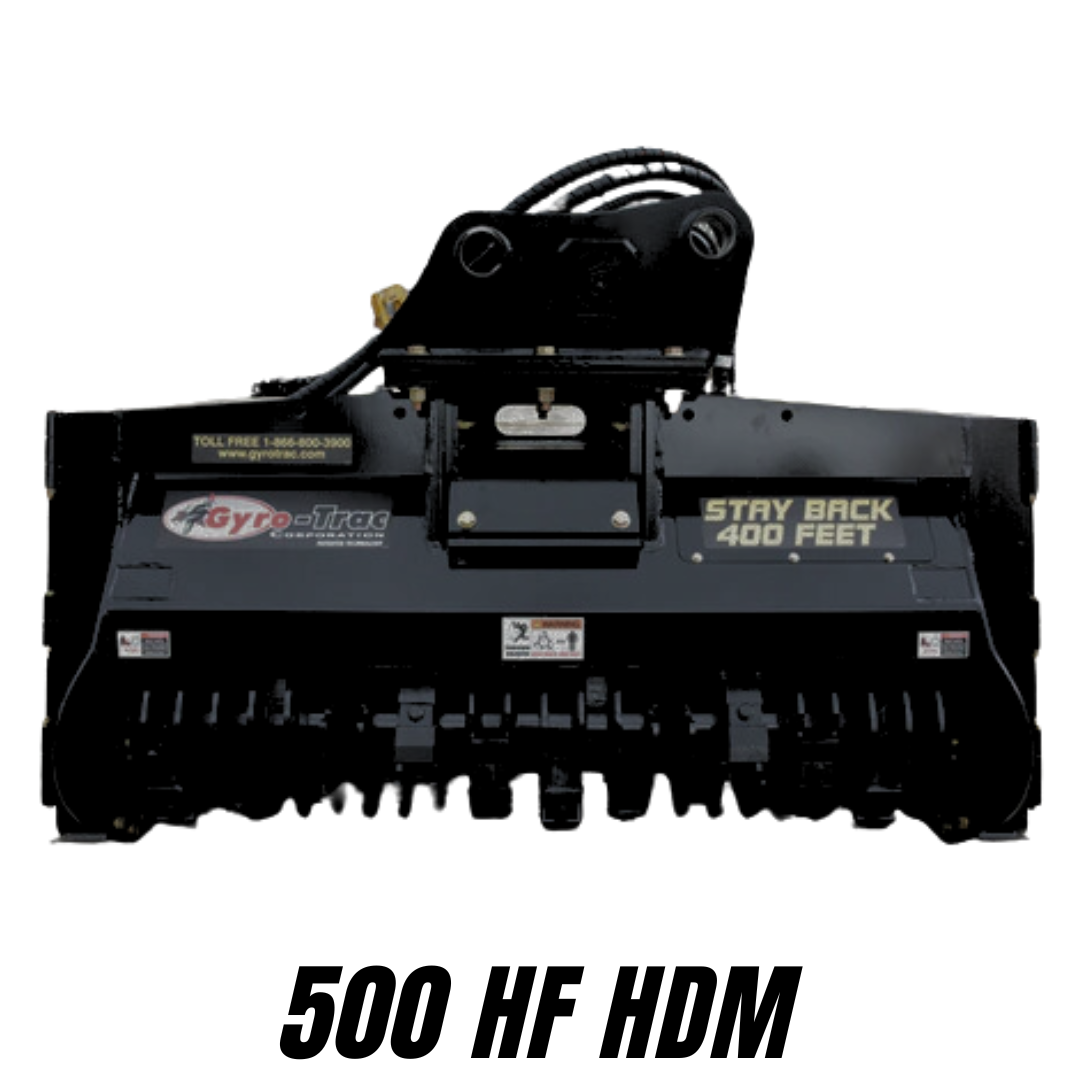

500 HF HDM Cutter-head
500 HF HDM Cutter-head Sale price$0.00
